Series: Alpha Series - Above-Ground oil/water/solids Separators

Since 1989, the Alpha has been a highly effective above-ground oil-water separator, working in conjunction with catch basins and collection pits, to treat and discharge wash water to the sanitary sewer.

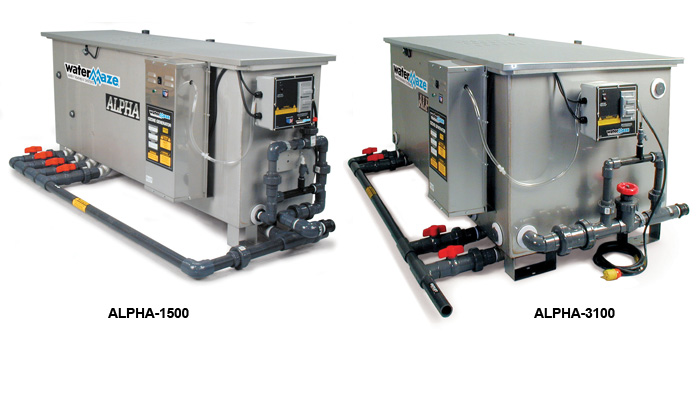

WATER MAZE ALPHA SERIES

Features:

Flow Rate up to 30 GPM
Stainless Steel Cabinet
Up to 1000 sq. ft. of Coalescing Surface Area
Optimum Ozone Treatment

Model	Alpha-1500D	Alpha-3100D
Maximun Flow Rate	Up to 15 GPM	Up to 30 GPM
Oil-Water Seperator Tank Capacity	125 gal.	250 gal.
Electrical: Volts, Phase, Amps	120V 1ph 10 amps	120V 1ph 10 amps
Sump Pump	1/2 HP, Submersible, Stainless Steel	1/2 HP, Submersible, Stainless Steel
Oil Skimmer	Decanting Tank	Decanting Tank
Ozone Generator	Series 101, 1 UV Lamp	Series 101, 1 UV Lamp
Coalescing Surface Area	500 sg. ft.	1,000 sq. ft.
Tank Construction	Stainless Steel, 12 gauge	Stainless Steel, 12 gauge
Dimensions (LxWxH)	80" x 36" x 31"	83" x 48" x 32"
Ship Weight	545 lbs.	760 lbs.

For more details and information, please refer to the product brochure.
