Series: Delta Series - Compact, low profile wash water treatment systems for recycling or sewer discharge

The Delta wash-water recycling systems are ideal when a wash facility is already equipped with a collection pit or pre-treatment system.

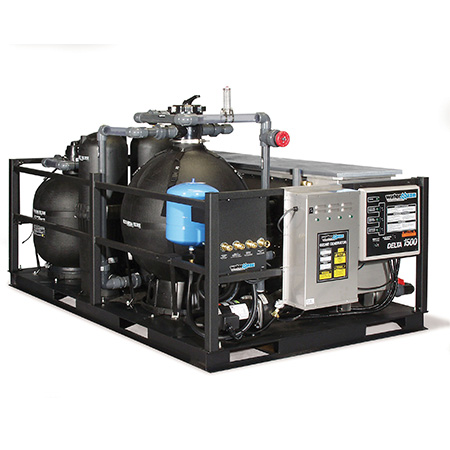

DELTA SERIES

Features:

Flow Rates up to 30 GPM
Stainless Steel Oil-Water Separator Cabinet
Up to 1000 sq. ft. of Coalescing Surface Area
High-Output Ozone Treatment

Model	Delta-1500A,B,C	Delta-3000A,B,C
Maximum Flow	1-15 GPM	1-30 GPM
Oil-Water Seperator Capacity	125 gal.	250 gal.
Electrical: Volts, Phase, Amps	230V 1ph 16A, 230V 3ph 10A, 460V 3ph 8A	230V 1ph 29A, 230V 3ph 16A, 460V 3ph 9A
Sump Pump	1/2 HP Centrifugal	1/2 HP Submersible
Filter Pump	1/2 - 3/4 HP	2 HP
Transfer Pump Centrifugal	3/4 - 1 ½ HP	2 HP
Oil Skimmer	Continual Flow, Decanting	Continual Flow, Decanting
Ozone Generator	Series 400, 4 UV Lamps	Series 400, 4 UV Lamps
Coalescing Surface Area	500 sq. ft.	1,000 sq. ft.
Media Filter	600 lbs.	800 lbs.
Carbon Filter (degassed)	200 lbs.	300 lbs.
Cartidge Filter Surface Area (20 Micron)	500 sq. ft.	500 sq. ft.
Dimensions (LxWxH)	8' x 5' x 4'	8' x 10' x 4'
Ship Weight (approx)	2,420 lbs.	4,200 lbs.

For more details and information, please refer to the product brochure.
