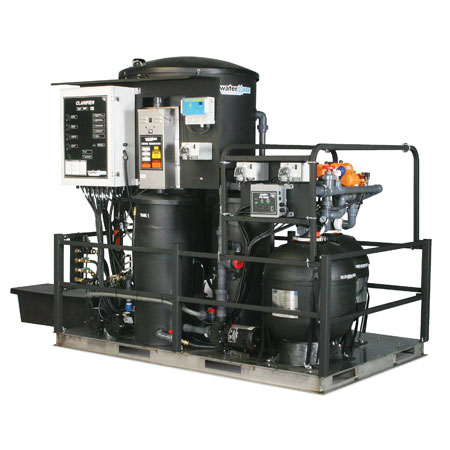

The CLPB is a unique wash-water treatment system that integrates the two very popular—because they’re low-cost and safe—technologies of filtration and bioremediation.
WATER MAZE CLPB SERIES
Features:
- Flow Rate up to 30 GPM
- Automated and Self-Contained
- No Chlorine or Hazardous Agents
- Increased Flexibility in Detergent Usage
- Treats Emulsified Oils and Suspended Solids
Specifications |
CLPB-7034A
|
CLPB-7034B |
CLPB-7034C
|
CLPB-5024A |
CLPB-5024B
|
CLPB-5024C |
Maximum Flow Rate |
1 - 30 gpm |
1 - 30 gpm
|
1 - 30 gpm
|
1 - 10 gpm
|
1- 10 gpm
|
1 - 10 gpm |
BioDigestion Unit |
600 gal. |
600 gal.
|
600 gal.
|
300 gal.
|
300 gal.
|
300 gal. |
Electrical |
230V 1ph 30amps |
230V 3ph 30amps |
460V 3ph 30amps |
230V 1ph 30amps
|
230V 3ph 30amps |
460V 3ph 30amps |
Compressed Air |
5 CFM @ 60-100 psi |
5 CFM @ 60-100 psi |
5 CFM @ 60-100 psi |
5 CFM @ 60-100 psi |
5 CFM @ 60-100 psi |
5 CFM @ 60-100 psi |
Sump Pump |
1/2 hp |
1/2 hp |
1/2 hp |
1/3 hp |
1/3 hp |
1/3 hp |
Transfer Pump |
2 hp |
2 hp |
2 hp |
1/2 hp |
1/2 hp |
1/2 hp |
Ozone Pump |
3/4 hp |
3/4 hp |
3/4 hp |
3/4 hp |
3/4 hp |
3/4 hp |
Media Filter |
1,000 lbs. |
1,000 lbs. |
1,000 lbs. |
325 lbs. |
325 lbs. |
325 lbs. |
Carbon Filter |
380 lbs. |
380 lbs. |
380 lbs. |
240 lbs. |
240 lbs. |
240 lbs. |
Ozone Generator |
Series 400 |
Series 400 |
Series 400 |
Series 200 |
Series 200 |
Series 200 |
Aeration |
VBT-100 Airstick 2 Sandstone diffusers |
2VBT-100 Airstick 2 Sandstone diffusers |
VBT-100 Airstick 2 Sandstone diffusers |
VBT-100 Airstick 2 Sandstone diffusers |
2VBT-100 Airstick 2 Sandstone diffusers |
VBT-100 Airstick 2 Sandstone diffusers |
Holding Tanks |
65 gal. |
65 gal. |
65 gal. |
40 gal. |
40 gal. |
40 gal. |
Dimessions (LxWxH)
|
108" x 72" x 110" |
108" x 72" x 110" |
108" x 72" x 110" |
96" x 61" x 94" |
96" x 61" x 94" |
96" x 61" x 94" |
Net Dry Weight (approx) |
2.950 lbs. |
2.950 lbs. |
2.950 lbs. |
1,850 lbs. |
1,850 lbs. |
1,850 lbs. |
For more details and information, please refer to the product brochure.
|
