The CLP is the most advanced, efficient and self-contained mechanical filtration wash-water recycling system in its price range on the market.

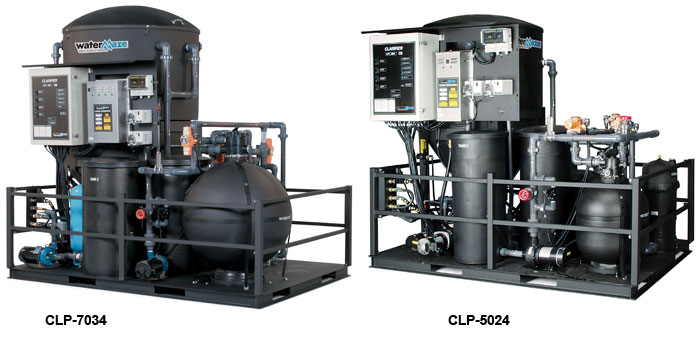

WATER MAZE CLP SERIES
Features:
- Flow Rate up to 30 GPM
- Self-Contained and Fully Automated
- Unique Oil-Attracting Coalescing Cones
- Ozone Treatment
- ETL Safety Certified
Feature |
CLP-7034A
|
CLP-7034B |
CLP-7034C
|
CLP-5024A |
CLP-5024B
|
CLP-5024C |
Maximum Flow Rate |
1 - 30 gpm
|
1 - 30 gpm |
1 - 30 gpm
|
1 - 10 gpm
|
1 - 10 gpm
|
1 - 10 gpm |
Oil/Water Seperator |
600 gal. |
600 gal.
|
600 gal.
|
300 gal. |
300 gal. |
300 gal.
|
Electrical Configuration: |
230V 1ph 30amps |
230V 3ph 15amps |
460V 3ph 9amps
|
230V 1ph 18amps
|
230V 3ph 12amps |
460V 3ph 8amps |
Compressed Air |
3 CFM @ 60-100 psi
|
3 CFM @ 60-100 psi |
3 CFM @ 60-100 psi |
3 CFM @ 60-100 psi |
3 CFM @ 60-100 psi |
3 CFM @ 60-100 psi |
Tranfer Pump |
2 hp |
2 hp |
2 hp |
1/2 hp |
1/2 hp |
1/2 hp |
Filter Pump |
2 hp |
2 hp |
2 hp |
3/4 hp |
3/4 hp |
3/4 hp |
Media Filter |
950 lbs. |
950 lbs. |
950 lbs. |
275 lbs. |
275 lbs. |
275 lbs. |
Carbon Filter |
320 lbs. |
320 lbs. |
320 lbs. |
200 lbs. |
200 lbs. |
200 lbs. |
Ozone Generator |
Series 400 |
Series 400 |
Series 400 |
Series 200 |
Series 200 |
Series 200 |
Coalescing Pack |
490 sq. ft. |
490 sq. ft. |
490 sq. ft. |
188 sq. ft. |
188 sq. ft. |
188 sq. ft. |
Holding Tanks |
65 gal. |
65 gal. |
65 gal. |
40 gal. |
40 gal. |
40 gal. |
Dimensions (LxWxH) |
108" x 72" x 110" |
108" x 72" x 110" |
108" x 72" x 110" |
96" x 61" x 94" |
96" x 61" x 94" |
96" x 72" x 94" |
Net Dry Weight (approx) |
2,950 lbs. |
2,950 lbs. |
2,950 lbs. |
1,850 lbs. |
1,850 lbs. |
1,850 lbs. |
For more details and information, please refer to the product brochure.
|
