The three models of the HBG-HBE conventional evaporators process wastewater at rates of 8, 15, and 30 gallons per hour.
WATER MAZE HBG/HBE EVAPORATORS
Features:
- Evaporation Rate of up to 30 Gallons per Hour
- Heated by Natural Gas, Propane or Electricity
- Optional Upgrade of Tank to Stainless Steel
- ETL Safety Certified to UL-795
.jpg)

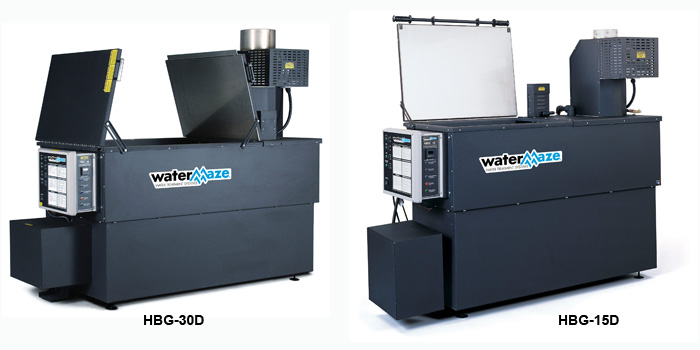

| Model |
HBG-30D |
HBG-15D |
HBE-10B,C
|
| Evaporation Rate |
25-30 GPH |
10-15 GPH
|
6-8 GPH
|
| Energy Source |
Natural Gas / Liquid Propane |
Natural Gas / Liquid Propane |
8 x 2600 Watt Heater Elements |
| BTU Per Hour / KW |
390,000 BTU/hr |
200,000 BTU/hr |
20.8 KW |
| Power Requirements |
120V 1ph 3 amps |
120V 1ph 3 amps |
B: 230V 3ph 57 amps
C: 460V 3ph 28 amps |
| Compressed Air |
4 CFM @ 60-100 psi |
4 CFM @ 60-100 psi |
4 CFM @ 60-100 psi |
| Tank Capacity |
125 gal. |
70 gal. |
55 gal. |
| Tank Material |
Carbon Steel
(3/16" walls, 3/8" floor) |
Carbon Steel
(3/16" walls, 3/8" floor) |
Carbon Steel
(3/16" walls, 3/8" floor) |
| Insulation |
Double Walled |
Double Walled |
Double Walled |
| Exhaust Stack |
10" Stainless Steel |
6" Stainless Steel |
6" Stainless Steel |
Dimensions (LxWxH)
|
90" x 44" x 70"
|
78.5" x 33" x 65"
|
58.5" x 41" x 64"
|
| Shipping Weight (approx) |
1,435 lbs. |
1,215 lbs. |
835 lbs. |
For more details and information, please refer to the product brochure.
|
